AS-200-us 2xpump
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
200
DISPLACEMENT OF RECIRCULATION PUMP (M)
12
NUMBER OF COOLED BEVERAGES
2

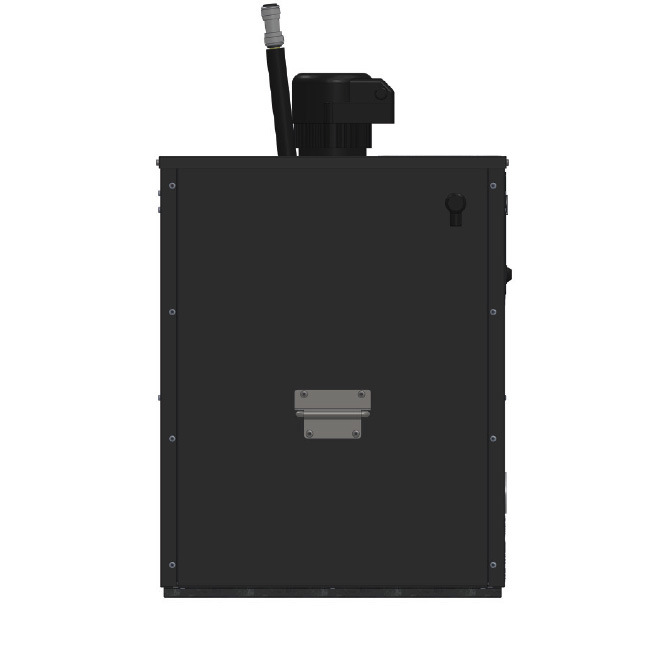

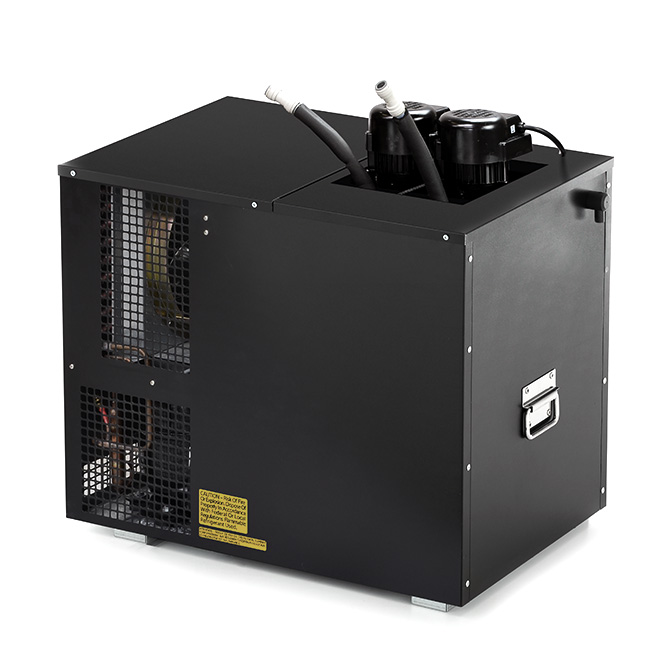

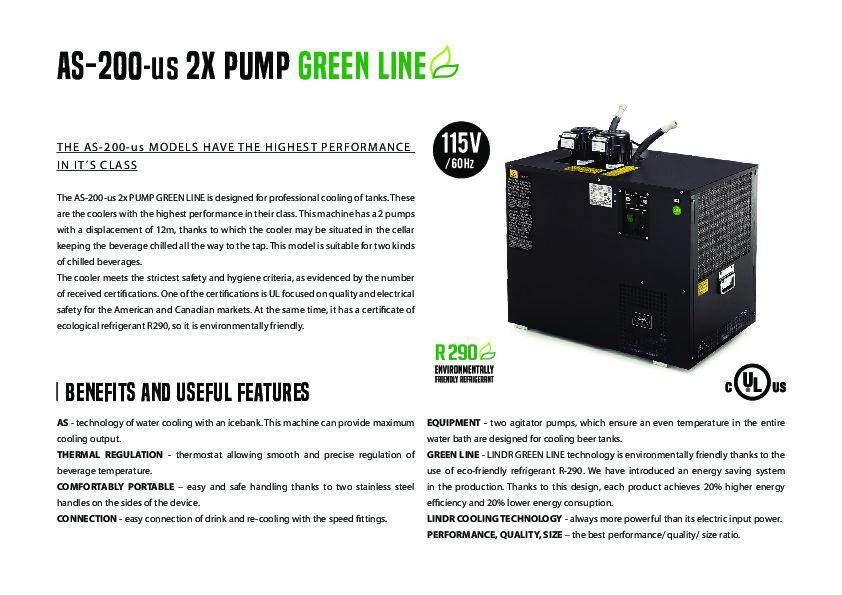

AS-200-us 2x pump GREEN LINE THE AS-200-us MODELS HAVE THE HIGHEST PERFORMANCE IN IT´S CLASS The AS-200-us 2x PUMP GREEN LINE is designed for professional cooling of tanks. These are the coolers with the highest performance in their class. This machine has a 2 pumps with a displacement of 12m, thanks to which the cooler may be situated in the cellar keeping the beverage chilled all the way to the tap. This model is suitable for two kinds of chilled beverages. The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of received certifications. One of the certifications is UL focused on quality and electrical safety for the American and Canadian markets. At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
Benefits and useful features
- AS - technology of water cooling with an icebank. This machine can provide maximum cooling output.
- THERMAL REGULATION - thermostat allowing smooth and precise regulation of beverage temperature.
- COMFORTABLY PORTABLE – easy and safe handling thanks to two stainless steel handles on the sides of the device.
- CONNECTION - easy connection of drink and re-cooling with the speed fittings.

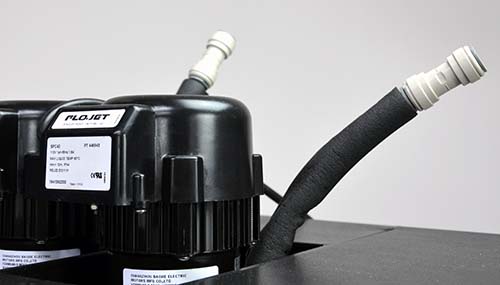

- EQUIPMENT - two agitator pumps, which ensure an even temperature in the entire water bath are designed for cooling beer tanks.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
- LINDR COOLING TECHNOLOGY - always more powerful than its electric input power.
- PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.

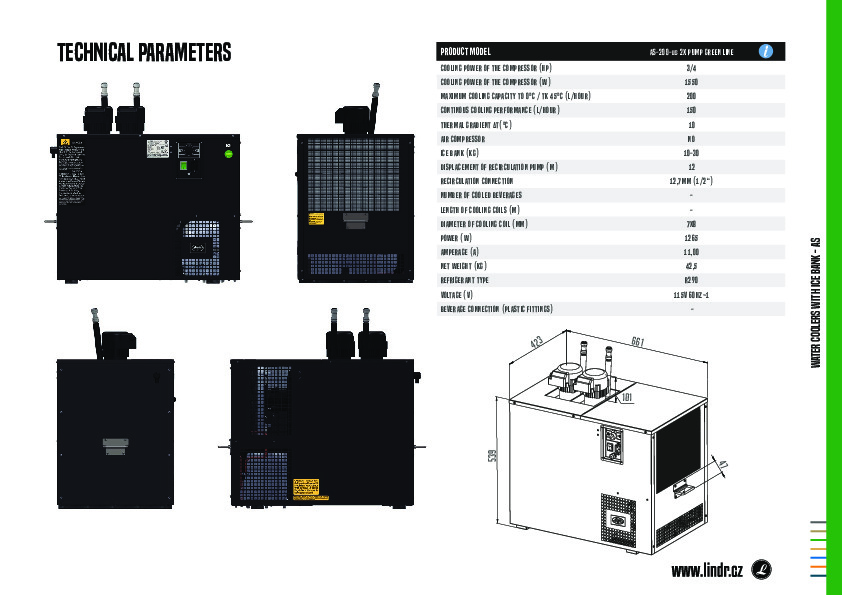

Technical details
AS-200-us 2xpump Green Line
COOLING POWER OF THE COMPRESSOR (HP)
3/4
COOLING POWER OF THE COMPRESSOR (W)
1550
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
200
CONTINOUS COOLING PERFORMANCE (L/HOUR)
150
THERMAL GRADIENT ΔT(°C)
10
ICE BANK (KG)
10-30
DISPLACEMENT OF RECIRCULATION PUMP (M)
12
RECIRCULATION CONNECTION
1/2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
-
DIAMETER OF COOLING COIL (MM)
-
POWER (W)
1265
AMPERAGE (A)
11,0
NET WEIGHT (KG)
42.5
REFRIGERANT TYPE
R290
VOLTAGE (V)
115V 60Hz~1
BEVERAGE CONNECTION
3/8
AIR CONNECTION
SPEEDFIT FITTINGS 8mm (1/2")
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
YES
DIAMETER OF COOLING COIL (10X0,5 MM)
NO
POWER CABLE PLUG
YES
DIGITAL THERMOSTAT
YES
Advantages AS-200-us 2xpump Green Line

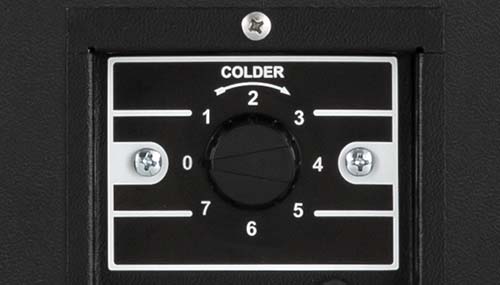

THERMAL REGULATION
Thermostat allowing smooth and precise regulation of beverage temperature.
COMFORTABLY PORTABLE
Easy and safe handling providing two stainless steel handles on the device sides.
CONNECTION
Easy connection re-cooling with the speed fittings.
CERTIFICATIONS
The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of received certifications. One of the certifications is UL focused on quality and electrical safety for the American and Canadian markets. At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
