AS-40 Glycol NEW
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
40
DISPLACEMENT OF RECIRCULATION PUMP (M)
6

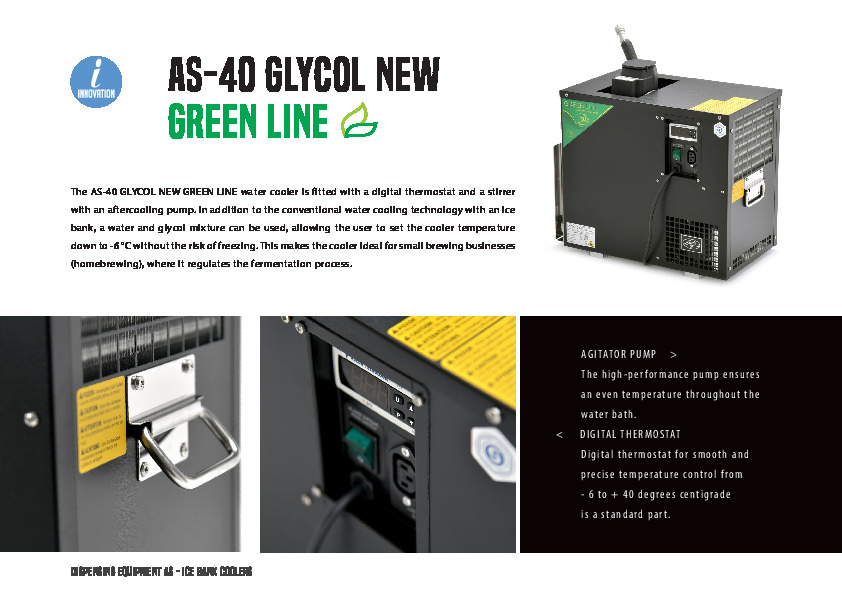

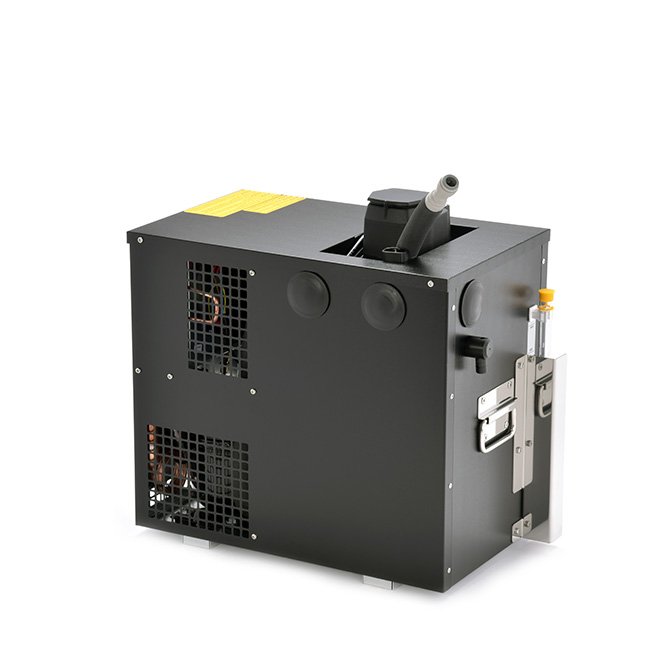

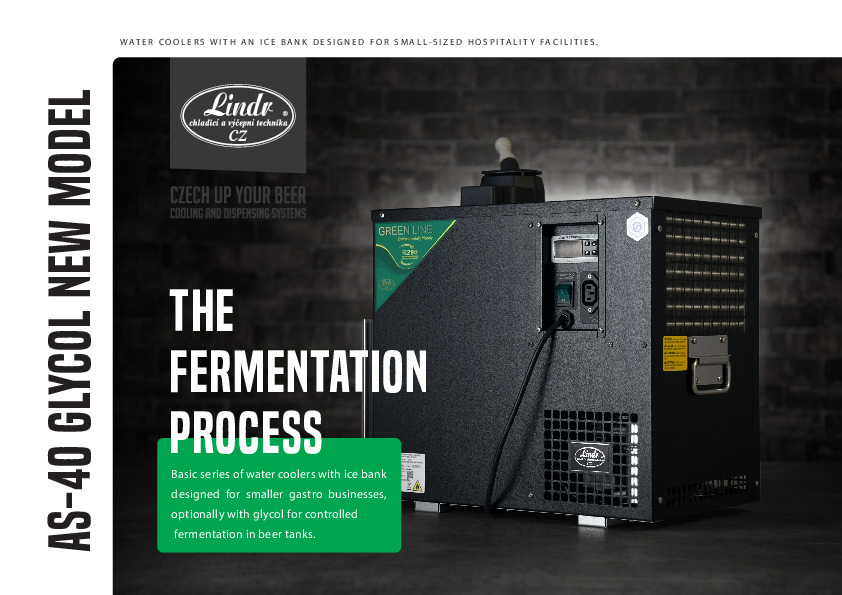

The AS-40 GLYCOL NEW GREEN LINE water cooler is fitted with a digital thermostat and a stirrer with an aftercooling pump. In addition to the conventional water cooling technology with an ice bank, a water and glycol mixture can be used, allowing the user to set the cooler temperature down to -6 °C without the risk of freezing. This makes the cooler ideal for small brewing businesses (homebrewing), where it regulates the fermentation process.
Benefits and useful features
- INNOVATION – All of our contact coolers undergo continuous development and meet all the latest safety standards and certifications (Czech and European).
- AS TECHNOLOGY – Water cooling technology with an ice bank, where full ice supply provides maximum cooling performance.
- AGITATOR PUMP – The cooler incorporates an agitator pump with an aftercooling pump with a discharge of 6 m.
- GREEN LINE – The LINDR GREEN LINE technology is environmentally friendly thanks to the use of the eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower power consumption.
- DURABLE SURFACE – The cooler is made of highly durable coated plastic material.
- CONSTRUCTION AND SERVICE – The modern layout of the cooling technology guarantees easy accessibility for any service and maintenance.
- EQUIPMENT – Standard features include a digital thermostat for smooth and precise beverage temperature control and a stirrer with an aftercooling pump.
- COMPACT DESIGN – The AS series coolers have the best performance, size and price ratio on the market.
Technical details
AS-40 Glycol NEW Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/8
COOLING POWER OF THE COMPRESSOR (W)
310
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
40
CONTINOUS COOLING PERFORMANCE (L/HOUR)
25
THERMAL GRADIENT ΔT(°C)
10
DISPLACEMENT OF RECIRCULATION PUMP (M)
6
RECIRCULATION CONNECTION
1/2
POWER (W)
437
AMPERAGE (A)
1,90
NET WEIGHT (KG)
19.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
NO
WATER DRAIN WITH WATERMARK
YES
POWER CABLE PLUG
YES
DIGITAL THERMOSTAT
YES
Advantages AS-40 Glycol NEW Green Line

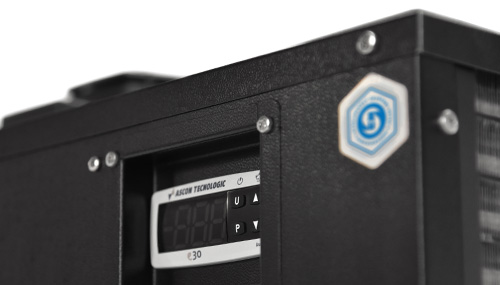

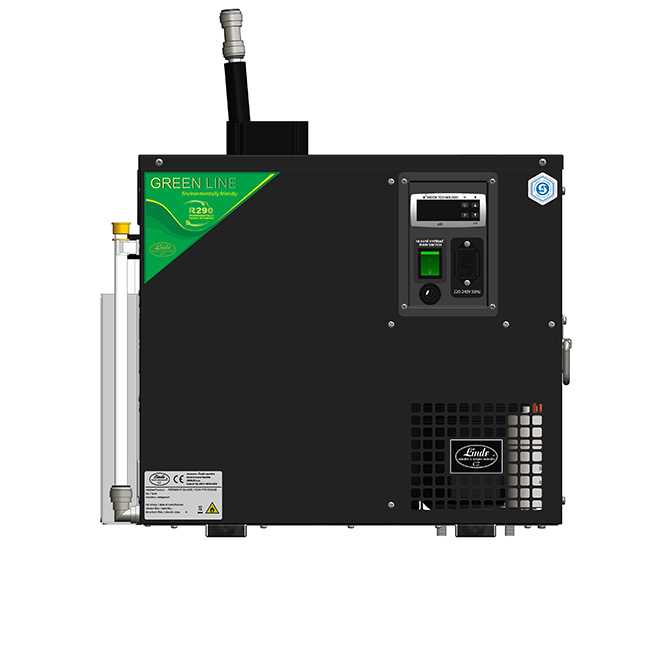

DIGITAL THERMOSTAT
Digital thermostat for smooth and precise temperature control from -6 to +40 degrees centigrade is a standard part
DURABLE SURFACE
The cooler is made of highly durable coated plastic material.

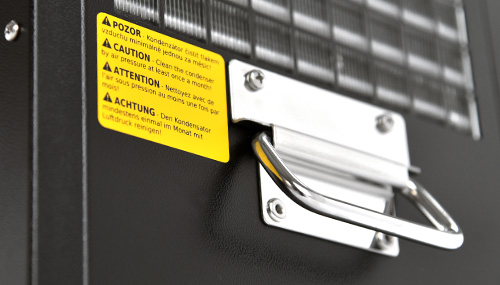

EASILY PORTABLE
Easy and safe handling with two stainless steel handles on the device sides.

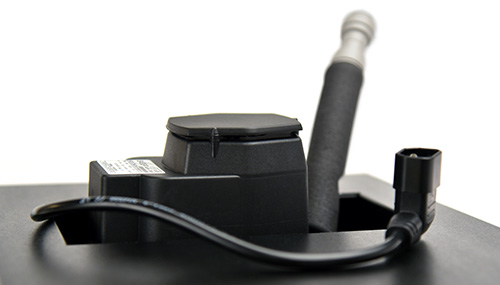

AGITATOR PUMP
The high-performance pump ensures an even temperature throughout the water bath.

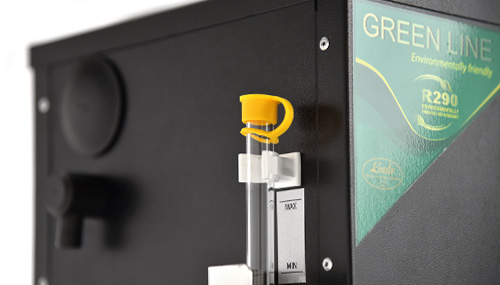

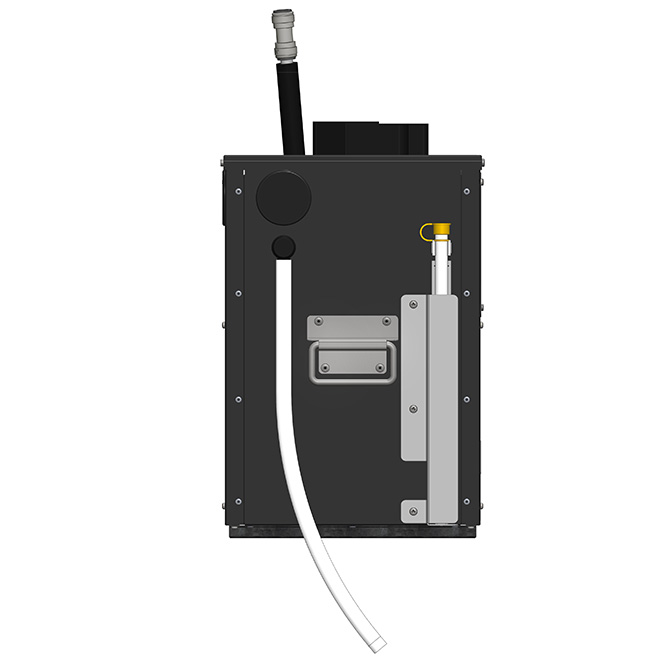

DRAIN VALVE WITH LEVEL GAUGE
The cooler is fitted with a drain valve that allows easy draining of water from the unit and the water level gauge to keep track of the level.
DOWNLOAD PRODUCT LIST
Instructions Water AS - video
Undercounter AS coolers
Undercounter beer coolers are always used in combination with the dispense tower. Beer cooler can be placed under the counter in the bar or restaurant area. The water in these machines helps to transfer the cold in the beer lines and also accumulates the cold.
