MAXIMUM COOLING CAPACITY (L/HOUR)

50

AIR COMPRESSOR

NO

NUMBER OF COOLED BEVERAGES

2

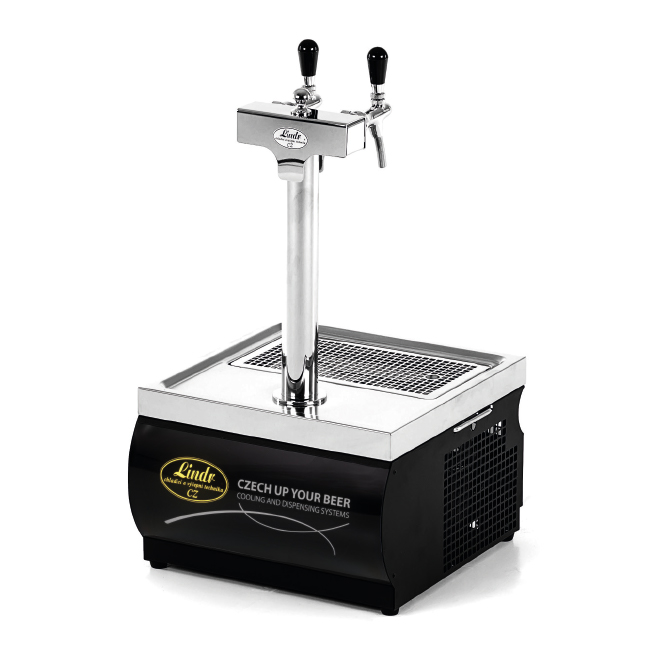

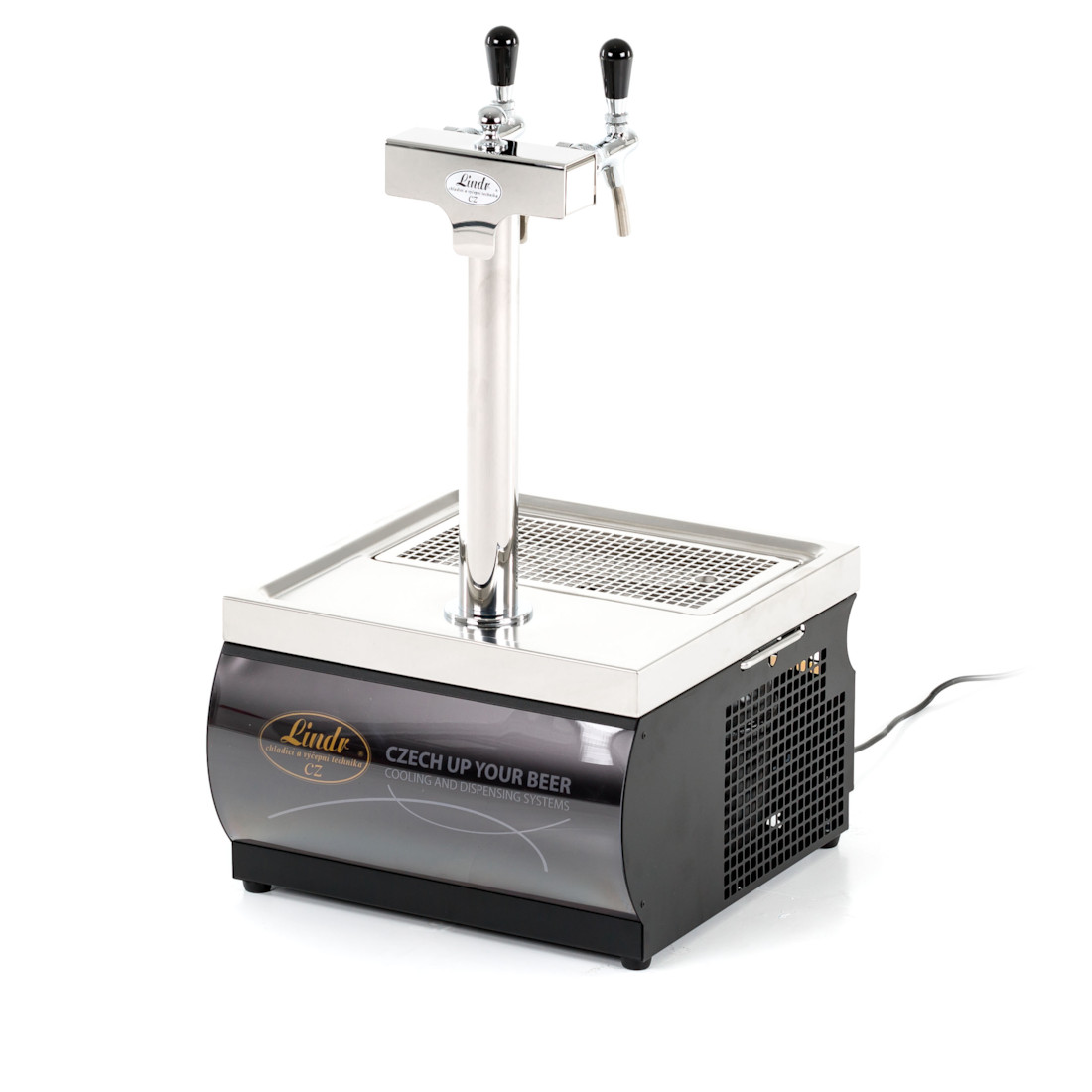

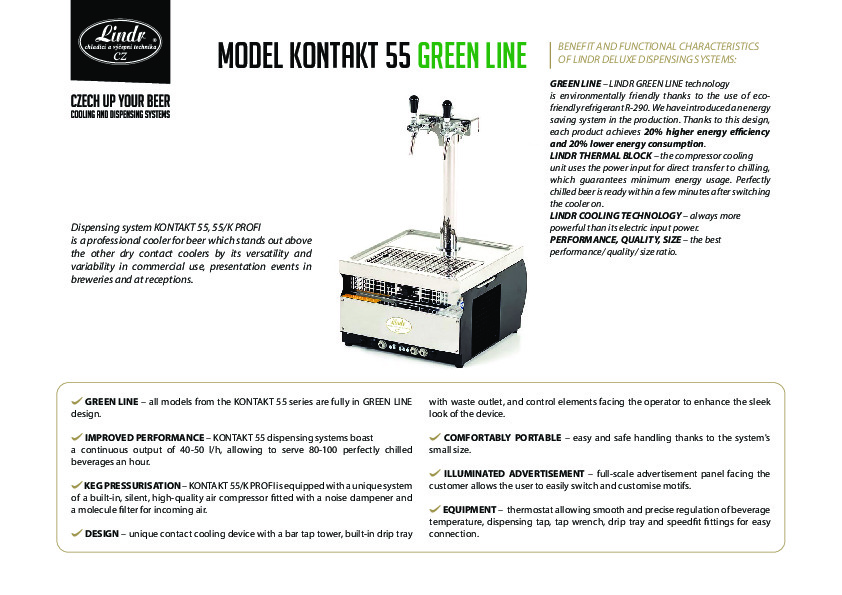

Dispensing system KONTAKT 55 GREEN LINE is a professional cooler for beer or other beverages which stands out above the other dry contact coolers by its versatility and variability in commercial use, presentation events in breweries and at receptions.

Benefits and useful features

  • PERFORMANCE – KONTAKT 55 GREEN LINE dispensing systems boast a continuous output of 40-50 l/h, allowing to serve 80-100 perfectly chilled beverages an hour.
  • DESIGN – unique contact cooling device with a bar tap tower, built-in drip tray with waste outlet, and control elements facing the operator to enhance the sleek look of the device.
  • COMFORTABLY PORTABLE – easy and safe handling thanks to the system's small size.
  • ILLUMINATED ADVERTISEMENT – full-scale advertisement panel facing the customer allows the user to easily switch and customise motifs.
  • EQUIPMENT – thermostat allowing smooth and precise regulation of beverage temperature, dispensing tap, tap wrench, drip tray and speedfit fittings for easy connection.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • LINDR THERMAL BLOCK – the compressor cooling unit uses the power input for direct transfer to chilling, which guarantees minimum energy usage. Perfectly chilled beer is ready within a few minutes after switching the cooler on.
  • LINDR COOLING TECHNOLOGY – always more powerful than its electric input power.
  • PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.
vykres

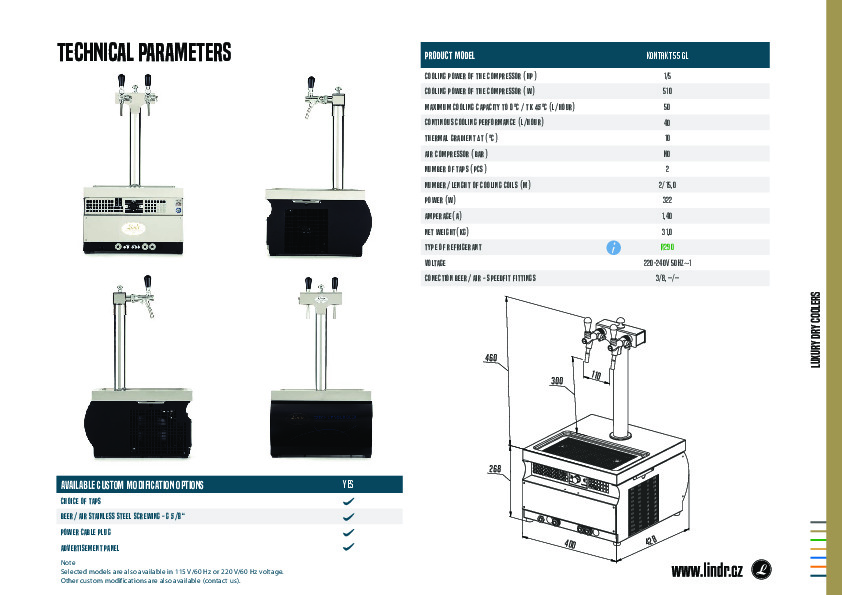

Technical details

KONTAKT 55 Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/5

COOLING POWER OF THE COMPRESSOR (W)

510

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

50

CONTINOUS COOLING PERFORMANCE (L/HOUR)

40

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

NO

NUMBER OF TAPS

2

NUMBER OF COOLED BEVERAGES

2

LENGTH OF COOLING COILS (M)

15,0

DIAMETER OF COOLING COIL (MM)

7x8

POWER (W)

322

AMPERAGE (A)

1,40

NET WEIGHT (KG)

31

REFRIGERANT TYPE

R290

VOLTAGE (V)

220-240V 50Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

CUSTOMIZED OPTIONS

CHOICE OF TAP

YES

STAINLESS STEEL SCREWING

YES

MOTIVE OF LIGHTING PANEL

YES

POWER CABLE PLUG

YES

Advantages KONTAKT 55 Green Line

DESIGN

DESIGN

Unique dispensing machine with dispense tower.

DRIP TRAY

DRIP TRAY

Built-in drip tray with waste.

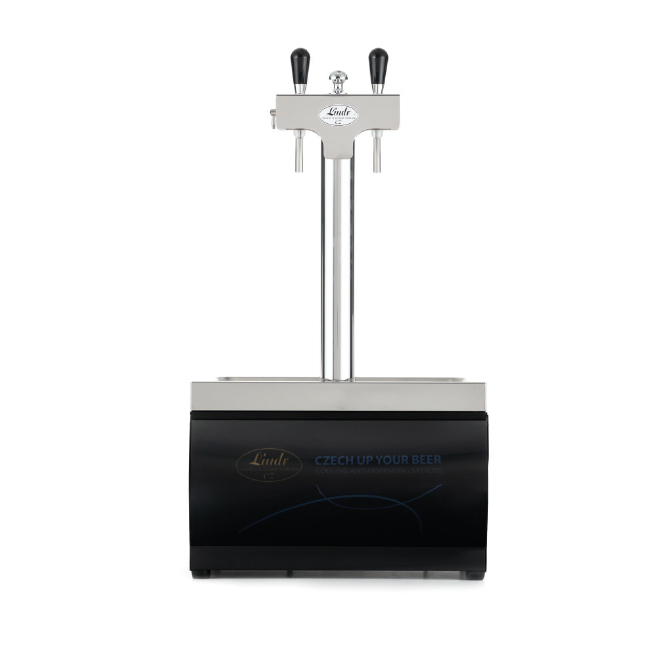

ILLUMINATED ADVERTISING

ILLUMINATED ADVERTISING

Advertising facing towards the customer, easy exchange of the motive.

SLIDING HANDLES

SLIDING HANDLES

Easily portable thanks to two retractable handles on the sides of the machine.
