MAXIMUM COOLING CAPACITY (L/HOUR)

30

AIR COMPRESSOR

YES

NUMBER OF COOLED BEVERAGES

2

115V/60Hz

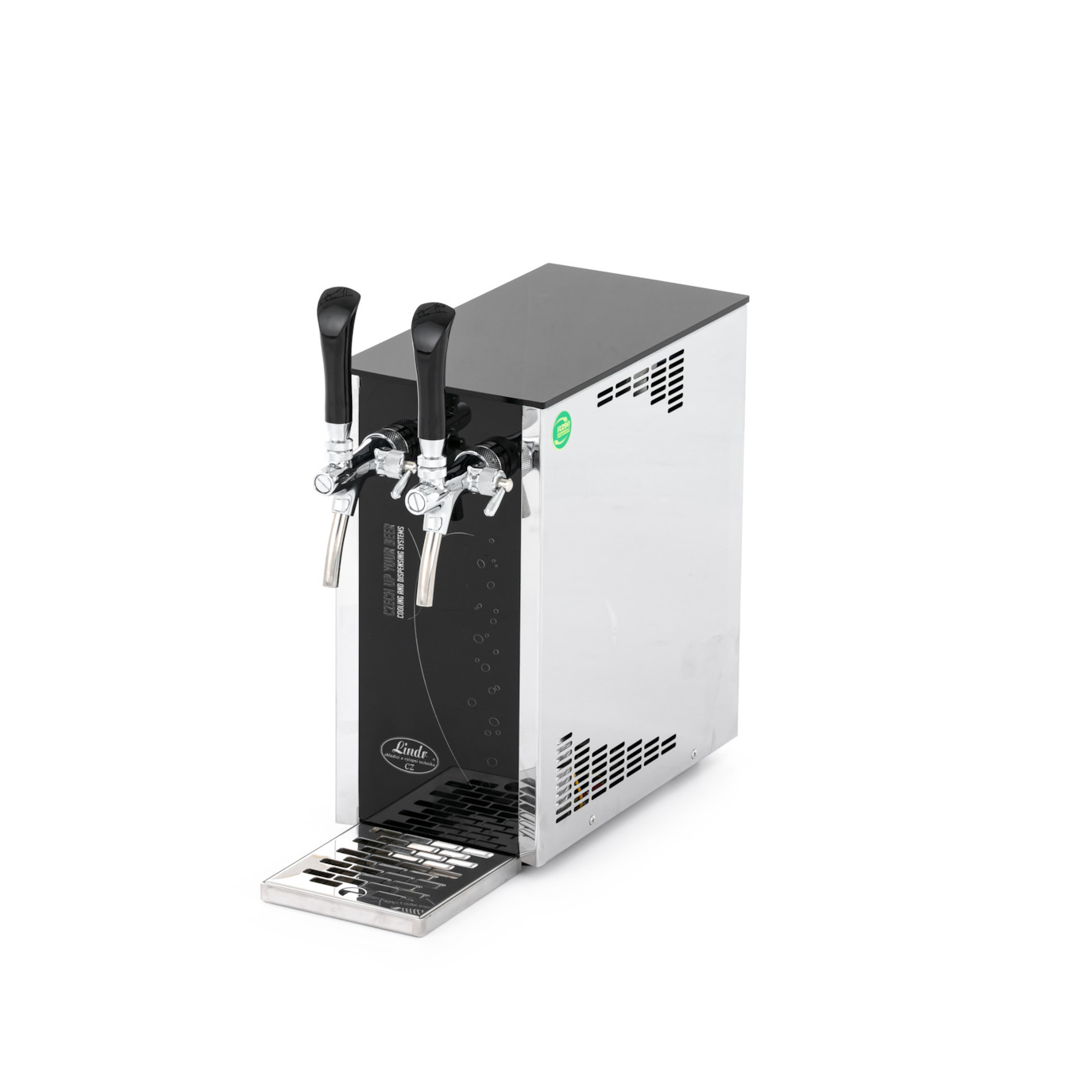

The main advantage of the PYGMY 25/K EXCLUSIVE 2x TAP NEW GREEN LINE dispensing machine is undoubtedly the modern and elegant look. The technology is based on the PYGMY series. Its use is therefore mainly in places where appearance really matters. That's why the front backlit panel is completely under your control so that it is as suitable as possible for the occasion where the dispensing machine will be used. It will find its place mainly at smaller private events, presentations and meetings.

Benefits and useful features

  • DESIGN – The coolers have a luxurious design with a backlit front panel and clean stainless steel lines, which unobtrusively underline the overall elegance.
  • INDIVIDUAL ADJUSTMENTS – You can design the motif of the front backlit panel yourself or we will be happy to help you with it. The basic color of the backlight is white, at your request we are able to backlight the panel with other colors.
  • GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
  • THERMOBLOCK LINDR – a modern compressor cooling unit using input energy for direct conversion to cold. This guarantees minimum energy consumption. High-quality chilled beer is ready within minutes of connecting the machine.
  • STAINLESS STEEL STRUCTURE – The complete structure and the coil are made of stainless steel. The materials used meet the highest requirements of hygienic standards and are a guarantee of long life of PYGMY 25/K EXCLUSIVE 2x TAP NEW GREEN LINE series coolers.
  • EQUIPMENT – The standard supplied parts are the thermostat enabling continuous and precise regulation of the beverage temperature, tap (s), tap wrench, drip tray and quick fittings for easy connection.
  • AIR COMPRESSOR – The models are equipped with a high-quality built-in air compressor, which, thanks to its quiet operation, is also suitable for more intimate events without disturbing the surrounding atmosphere.
  • CERTIFICATE - The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.
vykres

Technical details

PYGMY 25/K Exclusive-us 2x tap Green Line

COOLING POWER OF THE COMPRESSOR (HP)

1/5

COOLING POWER OF THE COMPRESSOR (W)

390

MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)

30

CONTINOUS COOLING PERFORMANCE (L/HOUR)

25

THERMAL GRADIENT ΔT(°C)

10

AIR COMPRESSOR

YES

AIR COMPRESSOR PRESSURE (BAR)

automatic 2,8-3,2

NUMBER OF TAPS

2

NUMBER OF COOLED BEVERAGES

2

LENGTH OF COOLING COILS (M)

9

DIAMETER OF COOLING COIL (MM)

7x8

POWER (W)

402,5

AMPERAGE (A)

3,50

NET WEIGHT (KG)

20.5

REFRIGERANT TYPE

R290

VOLTAGE (V)

115V 60Hz~1

BEVERAGE CONNECTION

SPEEDFIT FITTINGS 9,5mm (3/8")

AIR CONNECTION

SPEEDFIT FITTINGS 8mm (5/16")

CUSTOMIZED OPTIONS

MOTIVE OF LIGHTING PANEL

YES

Advantages PYGMY 25/K Exclusive-us 2x tap Green Line

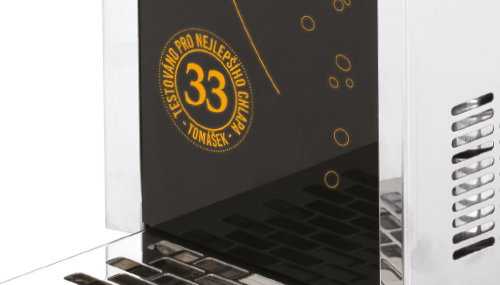

INDIVIDUAL ADJUSTMENTS

INDIVIDUAL ADJUSTMENTS

Possibility to choose your own motif on the backlit front panel.

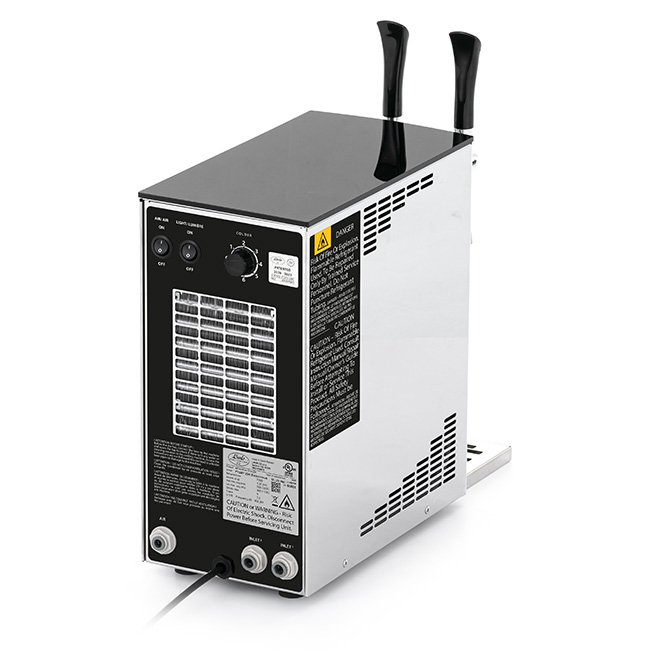

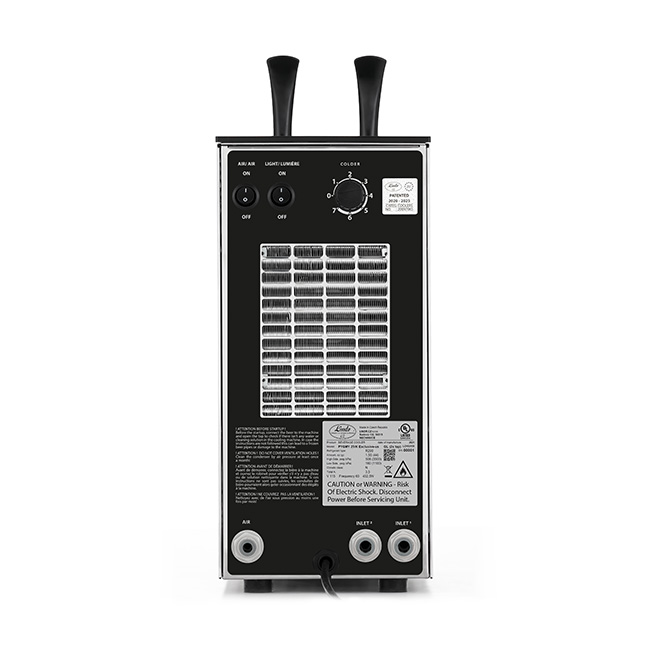

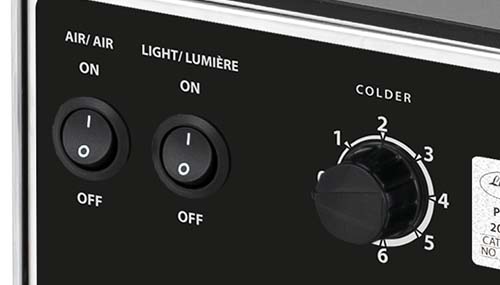

CONTROLS

CONTROLS

Controls on the back of the machine.

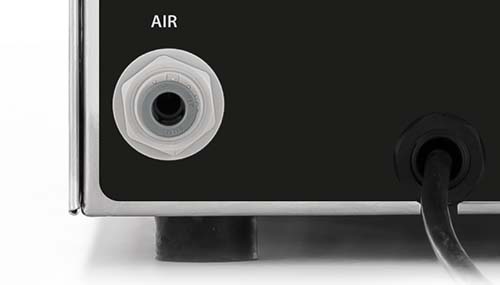

AIR COMPRESSOR

AIR COMPRESSOR

The model is equipped with a high-quality, quiet, built-in air compressor with a noise dampener and a molecular filter for incoming air.

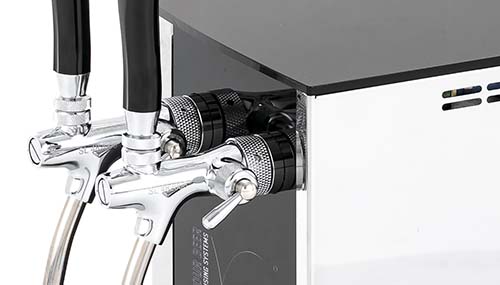

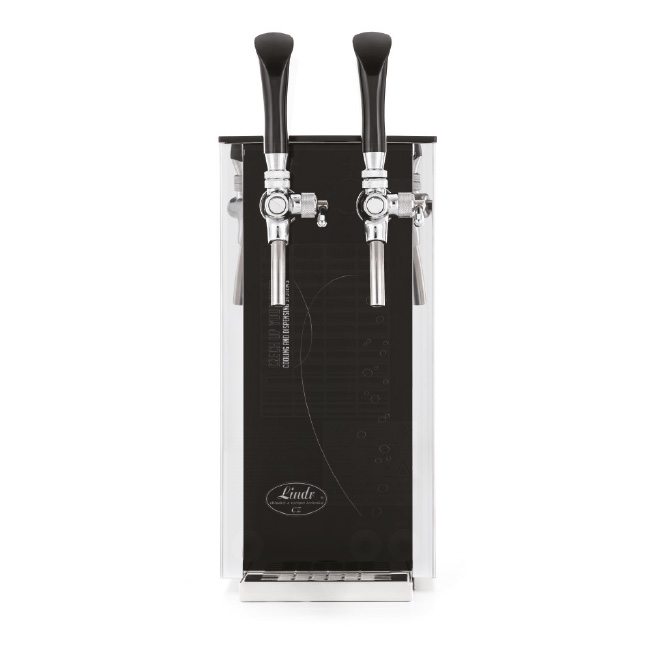

TWO-TAP MODEL

TWO-TAP MODEL

Thanks to the unique technological design, this cooler allows you to dispense two independent drinks (beer, cider, prosecco, etc.) at once.

CERTIFICATIONS

CERTIFICATIONS

The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.

DOWNLOAD PRODUCT LIST

Instructions Luxurious - video

Luxury dry coolers

The luxury range is designed for demanding customers with specific requirements for the design. We use wooden accessories for some types of dispensing equipment.

VIDEOTUTORIAL

How to connect double tap beer cooler LINDR - using inbuilt air compressor.
