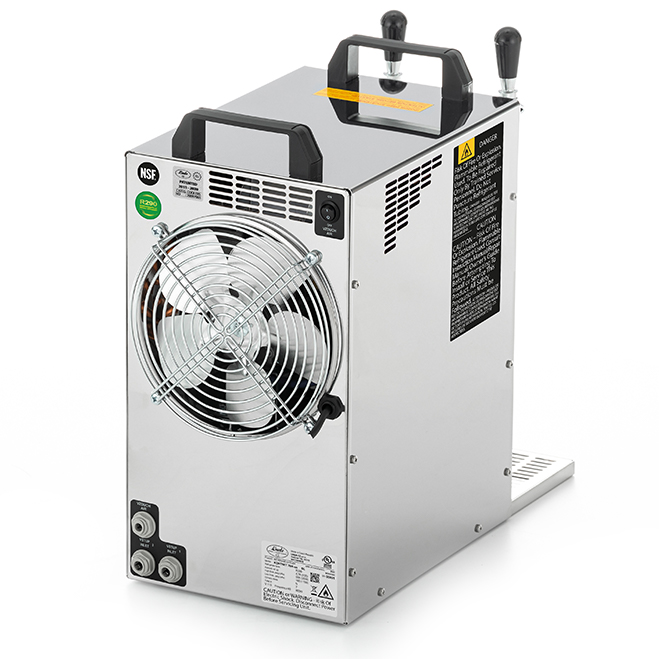

KONTAKT 70/K-us
Green Line
MAXIMUM COOLING CAPACITY (L/HOUR)
90
AIR COMPRESSOR
YES
NUMBER OF COOLED BEVERAGES
2

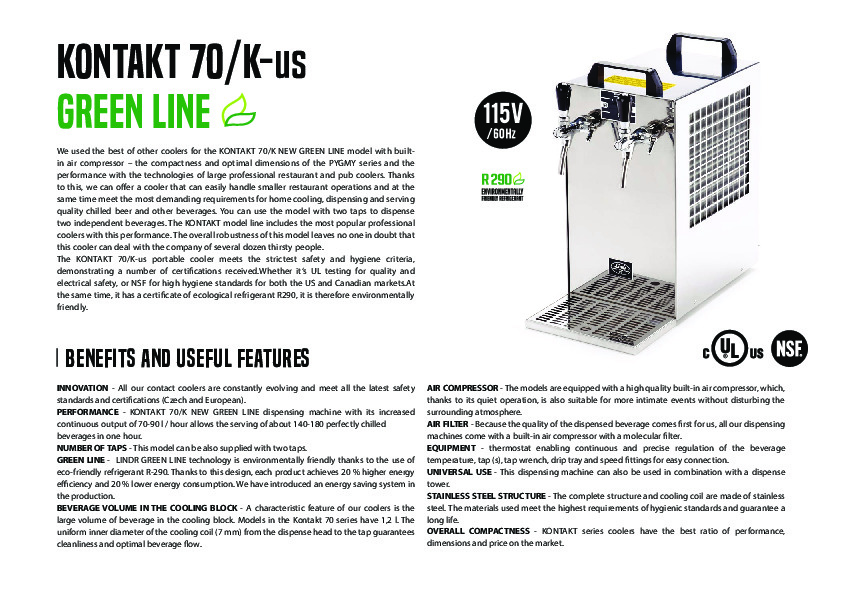

Dispensing systems from the KONTAKT 70 series are designed for professional cooling, dispensing and serving of perfectly chilled beer and other beverages on company celebrations, commercial events and smaller festivals, with ability to dispense up to 2 beverages at once (two-tap variant). Their smaller size and built-in air system open up new possibilities even in professional environments.
Benefits and useful features
- IMPROVED PERFORMANCE – KONTAKT 70/K Green line boasts a continuous output of 70-90 l/h, allowing you to serve 140-180 perfectly chilled drinks an hour.
- COMFORTABLY PORTABLE – ease and safety of handling is maintained thanks to the system's relatively small size and two handles located on top.
- KEG PRESSURISATION – MODELS KONTAKT 70/K 1x tap and 70/K are equipped with a unique system of a built-in, silent, more powerful high-quality air compressor fitted with a noise dampener, a molecule filter for incoming air an automatic operating pressure setting.
- EQUIPMENT – thermostat allowing smooth and precise regulation of beverage temperature, dispensing tap(s), drip tray and speedfit fittings for easy connection.
- VERSATILITY – can also be used with a bar dispense tower.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Thanks to this design, each product achieves 20 % higher energy efficiency and 20 % lower energy consumption. We have introduced an energy saving system in the production.
- LINDR THERMAL BLOCK – the compressor cooling unit uses the power input for direct transfer to chilling, which guarantees minimum energy usage. Perfectly chilled beer is ready within a few minutes after switching the cooler on.
- STAINLESS CONSTRUCTION – the entire body and the coil of the cooler are made of stainless steel. The materials used meet the strictest hygienic standards and guarantee long service life of the cooler.
- PERFORMANCE, QUALITY, SIZE – the best performance/ quality/ size ratio.
- CERTIFICATE - The cooler meets the strictest safety and hygiene criteria, as evidenced by the number of certifications it has received.Whether the one from UL's quality and electrical safety testing laboratory or the NSF's high hygiene standards, both are intended for the US and Canadian markets.At the same time, it has a certificate of ecological refrigerant R290, so it is environmentally friendly.

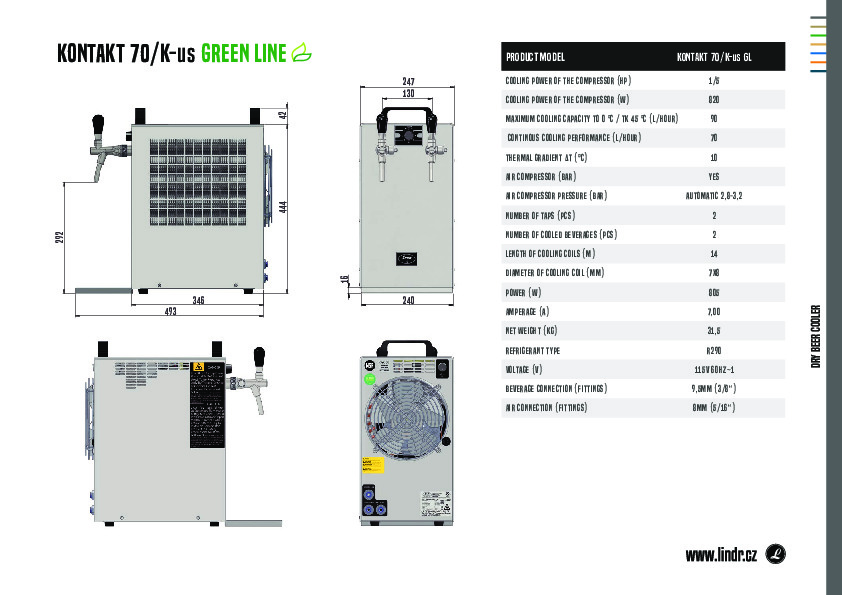

Technical details
KONTAKT 70/K-us Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/5
COOLING POWER OF THE COMPRESSOR (W)
820
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
90
CONTINOUS COOLING PERFORMANCE (L/HOUR)
70
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
YES
AIR COMPRESSOR PRESSURE (BAR)
automatic 2,8-3,2
NUMBER OF TAPS
2
NUMBER OF COOLED BEVERAGES
2
LENGTH OF COOLING COILS (M)
2X14
DIAMETER OF COOLING COIL (MM)
7X8
POWER (W)
805
AMPERAGE (A)
7,00
NET WEIGHT (KG)
31.5
REFRIGERANT TYPE
R290
VOLTAGE (V)
115V 60HZ~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
AIR CONNECTION
SPEEDFIT FITTINGS 8mm (5/16")
Advantages KONTAKT 70/K-us Green Line
COMFORTABLY PORTABLE
Ease and safety of handling is maintained thanks to the system's relatively small size and two handles located on top.
THERMAL REGULATION
Thermostat allowing smooth and precise regulation of beverage temperature.
AIR COMPRESSOR
MODEL KONTAKT 70/K-us GL is equipped with a unique system of a built-in, silent, high-quality air compressor fitted with a noise dampener, a molecule filter for incoming air and automatic operating pressure setting.
