CW COMPACT
Green Line
This machine produces 20-25 litres per hour of high quality chilled soda water. Soda water machine SODA CW COMPACT is a professional machine for production of chilled soda water by mixing drinking water with carbon dioxide. This practical machine can be used in offices, production facilities and households. Easy dispensing is guaranteed by the high quality outlet valve. This machine comes with a stainless steel drip tray and an adjustable temperature control with 7 different settings. The CO2 connection is for the use of disposable threaded bottles Tr 21x4.
Benefits and useful features
- OUTPUT - this machine produces 20-25 litres per hour of high quality chilled soda water.
- DESIGN - all external construction is made from stainless steel to give a more clean and aesthetic look. Easy dispensing is guaranteed by the high quality outletvalve.
- GREEN LINE - SODA CW COMPACT is produced in GREEN LINE design.
- EQUIPMENT - this machine comes with a stainless steel drip tray and an adjustable temperature control with 7 different settings. The CO2 connection is for the use of disposable threaded bottles Tr 21x4.
- GREEN LINE – LINDR GREEN LINE technology is environmentally friendly thanks to the use of eco-friendly refrigerant R-290. Our production incorporates systemic energy-saving measures. Thanks to this design, each product achieves 20% higher energy efficiency and 20% lower energy consumption.
- LINDR COOLING TECHNOLOGY – always more powerful than its electric input power.
- STAINLESS CONSTRUCTION – The entire body and the coil of the cooler are made of stainless steel. The materials used meet the strictest hygienic standards and guarantee long service life of the cooler.

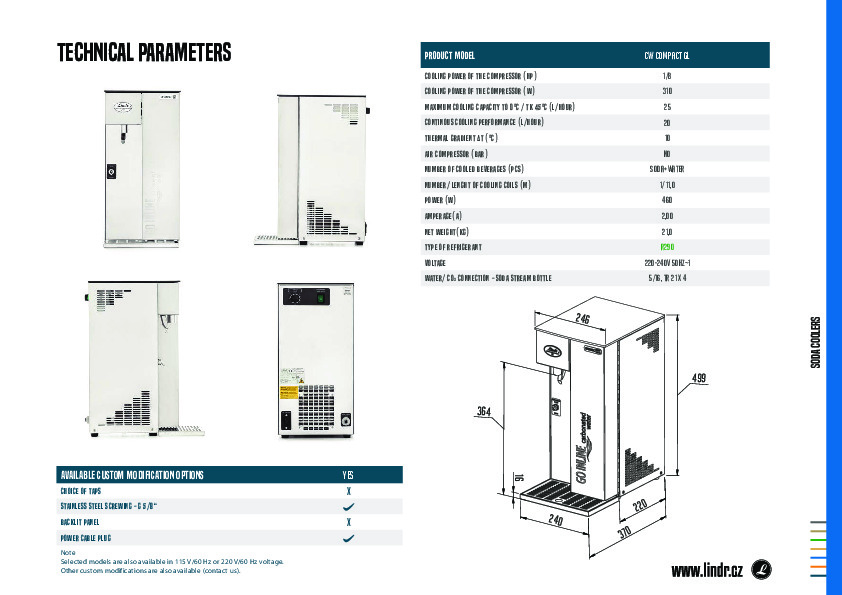

Technical details
CW COMPACT Green Line
COOLING POWER OF THE COMPRESSOR (HP)
1/8
COOLING POWER OF THE COMPRESSOR (W)
310
MAXIMUM COOLING CAPACITY TO 0°C / TK 45°C (L/HOUR)
25
CONTINOUS COOLING PERFORMANCE (L/HOUR)
20
THERMAL GRADIENT ΔT(°C)
10
AIR COMPRESSOR
NO
NUMBER OF TAPS
1
NUMBER OF COOLED BEVERAGES
2
CARBONATED WATER (L/HOUR)
20-25
LENGTH OF COOLING COILS (M)
11
POWER (W)
460
AMPERAGE (A)
2,00
NET WEIGHT (KG)
21.0
REFRIGERANT TYPE
R290
VOLTAGE (V)
220-240V 50Hz~1
BEVERAGE CONNECTION
SPEEDFIT FITTINGS 9,5mm (3/8")
CO2 CONNECTION
TR 21x4
CUSTOMIZED OPTIONS
CHOICE OF TAP
NO
STAINLESS STEEL SCREWING
YES
MOTIVE OF LIGHTING PANEL
NO
POWER CABLE PLUG
YES
Advantages CW COMPACT Green Line

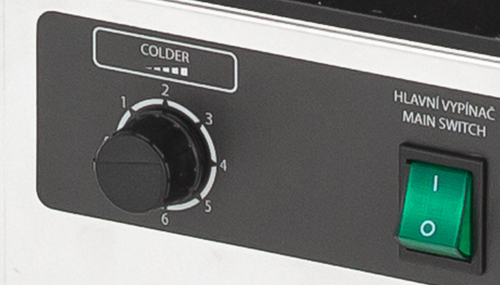

THERMAL REGULATION
Thermostat allowing smooth and precise regulation of beverage temperature.

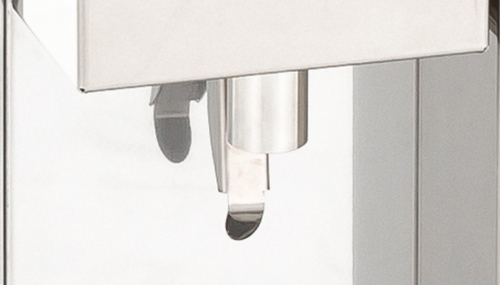

TOUCHLESS DISPENSING
Easy and hygienic pouring of beverage thanks to stainless steel lever valve without hand touch.

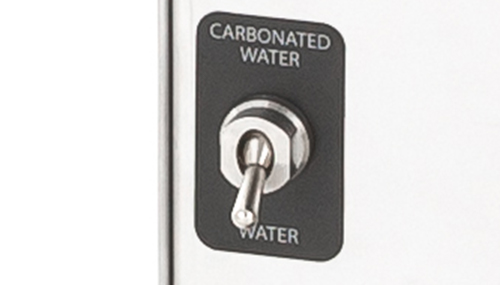

CO2 VALVE
Easy disconnection of co2 gas for dispensing of still water.
